Infiray Thermal Imaging MAH50R Superior Thermal Imaging Solution

Place of Origin China
Brand Name Infiray
Model Number MAH50R
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 - 15 working Days
Payment Terms MoneyGram,Western Union,T/T
Supply Ability 200 Unit/Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

MAH50R Thermal Imaging

,

Infiray Thermal Imaging

Leave a Message
Product Description

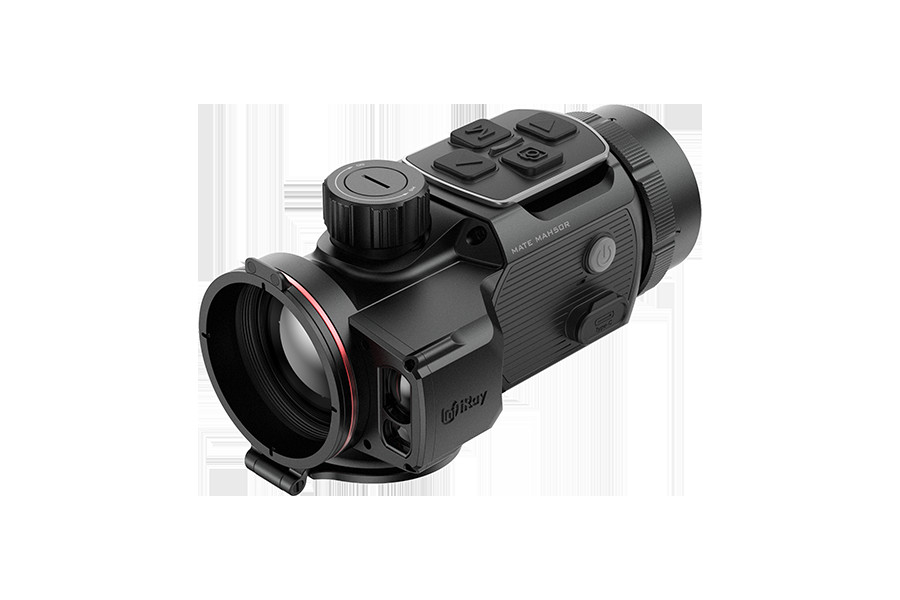

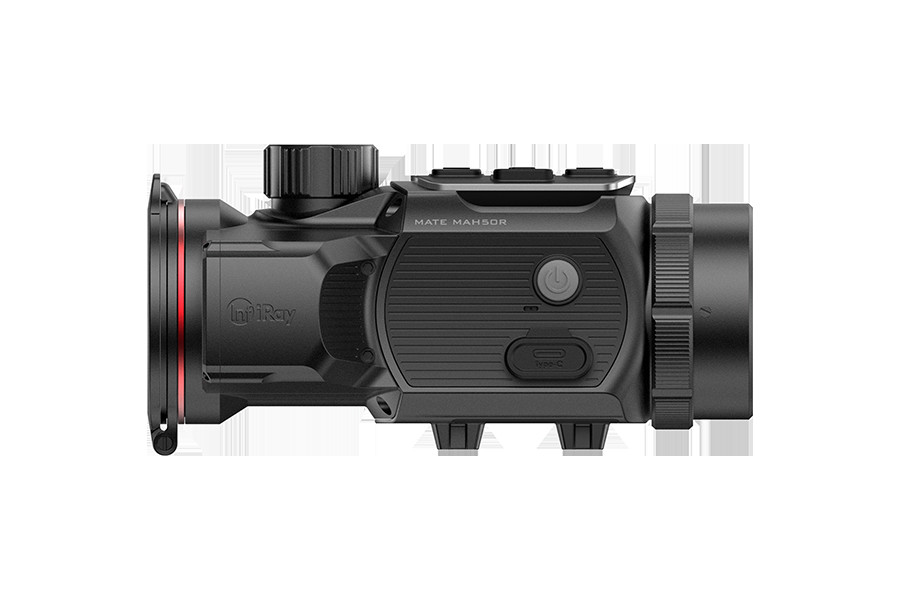

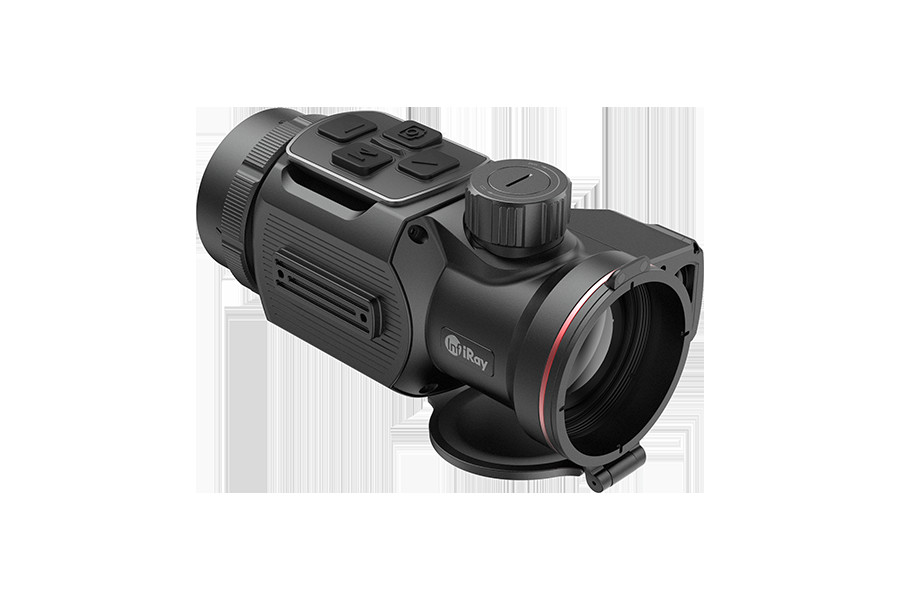

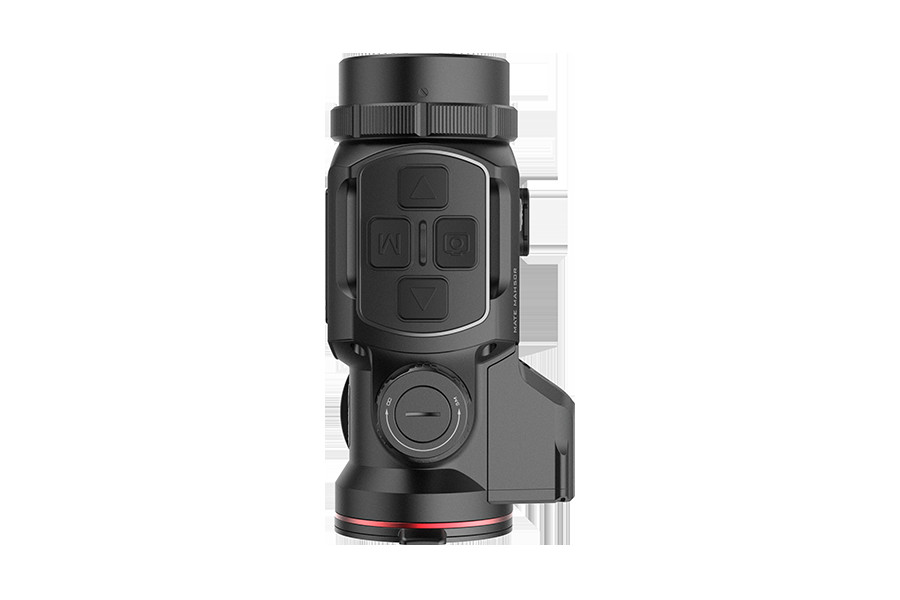

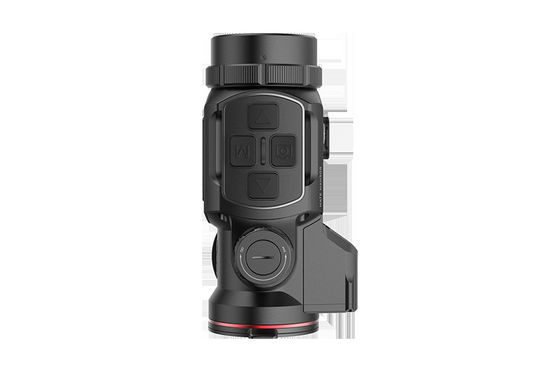

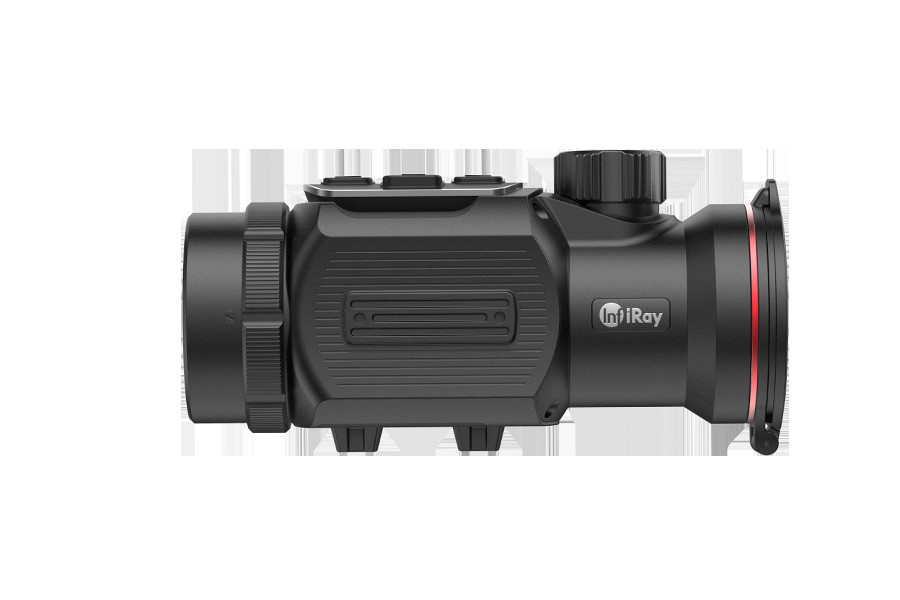

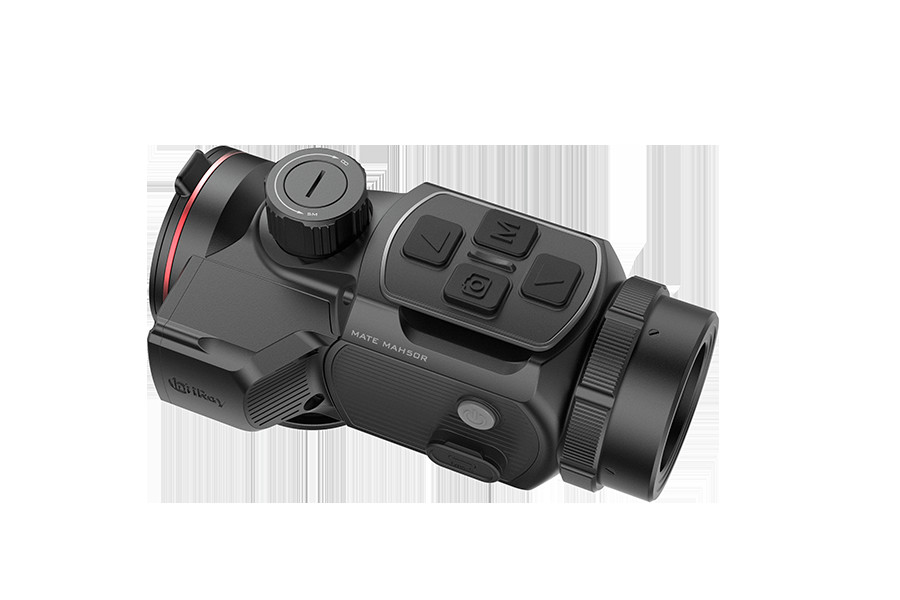

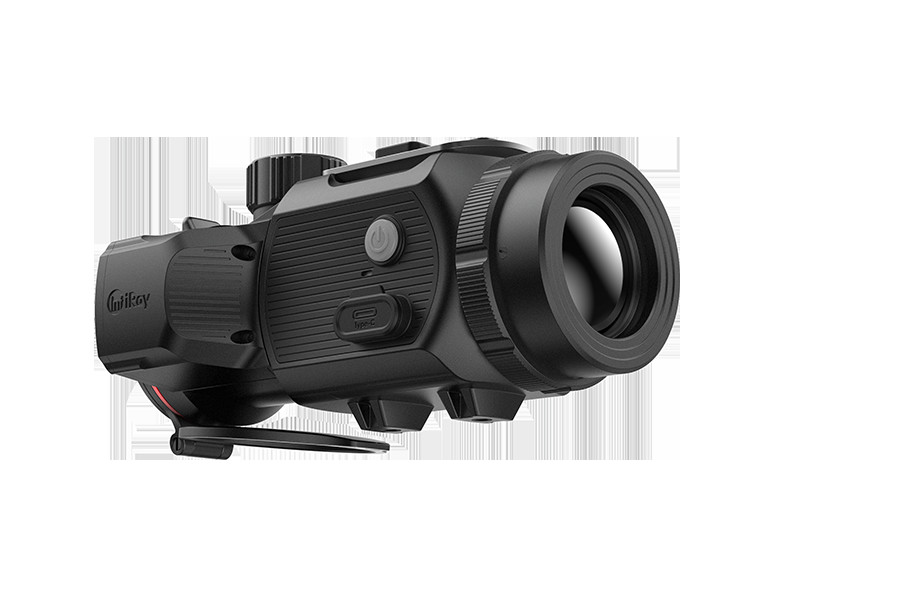

The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existing day scope. With a BRAND NEW 640x512 resolution, NETD≤18mK sensor, and a built-in LRF with built-in ballistic capabilities, the MAH50R elevates the thermal clip-on experience to new heights.


Featuring the same magnesium alloy housing, distortion-free display, and removable control pad as the MAH50, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail (optional add-on). Additional accessories, including a monocular extension, provide improved flexibility on your next hunt or trip to the range.


Navigating Accuracy with Ballistic Calculation

Supports strategic and precise ballistic calculations, ensuring each shot is accurately delivered. Hunters can more accurately predict the trajectory of bullets or arrows, thereby increasing the likelihood of hitting the target. It also helps in understanding the potential endpoint of the projectile, reducing the risk of accidental injuries and other safety hazards.


Magnetic Battery Packs

The device comes with additional magnetic battery packs for ease of carrying and installation, extending hunting time without the worry of battery depletion.

Detector Specifications

Type

Vox

Resolution, pixel

640x512

Pixel Size, μm

12

NETD, mk

≤18

Frame Rate, Hz

50

Optical Specifications

Objective Lens, mm

50mm/F1.1

Field of View (H×V), °

8.8 × 7.0

Linear Field of View (HxV), m at 100m

15.4 x 12.3

Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2

Attachment: 1

Monocular: 1x/2X/4X

Detection range, m (Target size: 1.7m×0.5m, P(n)=99%)

2600

Display Specifications

Type

AMOLED

Resolution, pixels

1024×768

Battery Power Supply

Battery

Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2

Max. operating time (22),h

4+5

External power supply

5V (Type C)

Physical Specifications

Wi-Fi/APP

Support (InfiRay outdoor)

Photo/video recorder

Support

MIC

Support

Memory capacity

32GB

IP rating

IP67

Operating temperature,

-20 ~ +50

Weight, g

500g

Dimension, mm

147*75*73

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules

6000

Recommended magnification of the day sight, x

G1/G2: 1×-5×

G3/G4: 6×-10×

Click value@100m, cm

1.6

Functions

Laser rangefinder

Support, 1200m

Ballistic calculation

Support
