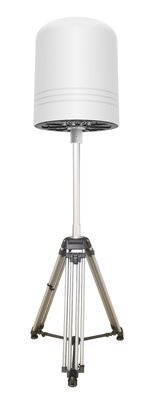

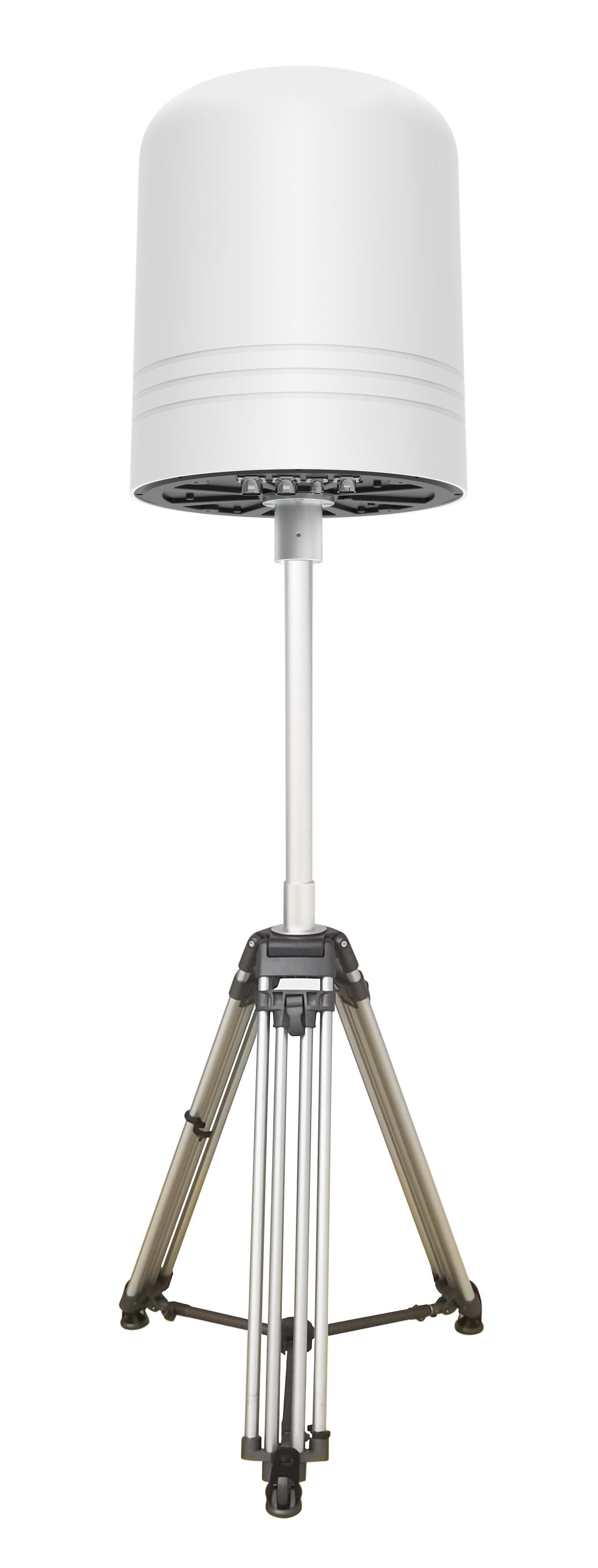

High Quality Factory Sale Quick deployment UAV Detection Position the drone and pilot with independent system

This product mainly consists of a device host, power adapter, network cable, router, bracket, and five parts, as shown in the table below:

Product features

1) Drone positioning:Multiple XlDs network to locate drone.
2) Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
3) Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
4) Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
5) Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
6) Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
7) Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
8) Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
9) Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.
10) Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
11) Standard API interface: The device has an API interface that can upload data to a specified system.
12) Integrated design: The equipment adopts an integrated design, which is easy to install.

Product features

1)Full range of detection models: capable of detecting and recognizing over 500 types of models, the system can recognize and detect common brand drones such as DJI, Autel, Dahua, Yuneec, as well as the vast majority of models on the market such as self-made walkthrough machines and WiFi machines.
2)Direction finding distance: In open environments, the direction finding distance can reach over 4km.
3)Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
4)Three all-around readiness: The equipment operates continuously 24/7, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides all-around (omnidirectional detection of drone intrusion) to ensure low altitude safety in the core protection area.

Performance parameter

Mechanical parameters

Electrical characteristics

Environmental adaptability
